KIT PRODUCT

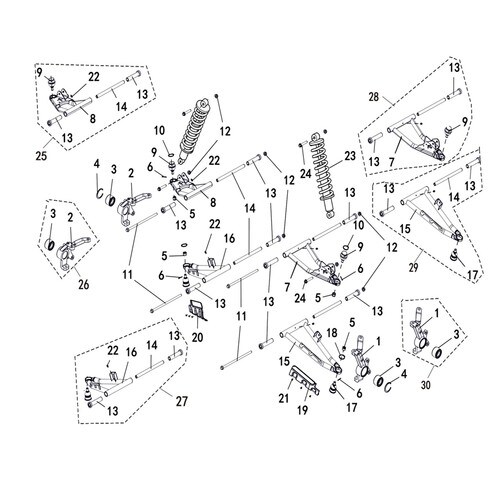

T-BOSS 550 FRONT SUSPENSION

REF#
SKU
DESCRIPTION
PRICE
QTY

1

48091

Carrier Bearing,Front,Lh

$137.96

2

48094

Carrier Bearing,Front,Rh

$137.96

3

48092

Bearing

$8.68

4

11204

Circlip 55

$2.60

5

70679

Nut M12×1.25

$2.30

6

10792

Pin 3.2×22

$0.60

7

48109

Arm Upper Frt Lh

$88.14

8

48110

Arm Upper Frt Rh

$88.14

9

48090

Ball Joint,Upper

$24.85

10

11152

Circlip 32

$1.20

11

48107

Scr Hxfl,Frt Arm

$6.20

12

10795

HEX NUT M10x1.25

$1.70

13

48106

BUSHING,LONG

$15.68

14

48105

Shaft Pivot

$21.49

15

48108

Arm Lwr Frt Lh

$114.84

16

48111

Arm Lwr Frt Rh

$114.84

17

48089

Ball Joint,Lwr

$24.85

18

70046

Circlip 34

$1.50

19

84251

COVER,ARM LWR REAR LH

$7.80

20

84252

COVER,ARM LWR REAR RH

$7.80

21

11153

SCREW M5X10

$1.20

22

27074

GREASE FITTING, ZERK

$1.60

23

48093

Front Shock Absorber Assy

$199.54

25

48335

Arm Upper Frt Rh Assy

$90.64

26

48336

CARRIER BEARING RIGHT ASSEMBLY

$137.96

27

48337

Arm Lwr Frt Rh Assy

$87.86

28

48338

Arm Upper Frt Lh Assy

$90.64

29

48339

Arm Lwr Frt Lh Assy

$87.86

30

48340

CARRIER BEARING WHEEL LEFT ASSEMBLY

$137.96
