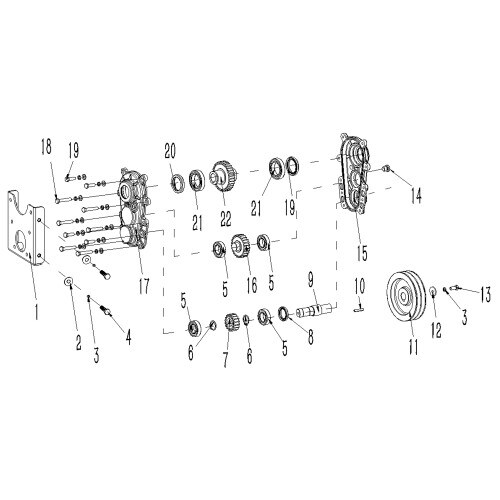

SNOW BLOWER 60IN CHAIN WHEEL

REF#
SKU
DESCRIPTION
PRICE
QTY

1

07.1.43.03.003

Gearbox Mounting Plate

$19.22

2

10.12.08.1.102

Plain Washer(same as 10.12.08.1.101)

$1.29

3

10.03.08.1.103

Socket Bolt

$2.58

3

10.13.04.104

Spring Washer

$1.29

5

10.15.07.1.012

Deep Groove Ball Bearing

$5.73

6

10.23.25.1.001

Shaft Spring

$1.29

7

06.1.43.00.036

Input Gear

$24.25

8

10.22.30.2.003

Seal

$1.83

9

06.1.43.00.037

Belt Wheel Shaft

$27.95

10

10.28.08.1.002

A Key

$2.58

11

08.1.43.01.003

140 Belt Wheel

$37.87

12

10.12.08.1.108

Plate

$1.29

13

10.01.08.1.105

Outer Hexagon Bolt

$2.58

14

06.1.43.00.033

Hexagon Socket Head

$3.86

15

06.1.43.00.031

Back Gearbox

$68.52

16

06.1.43.00.035

Middle Tooth

$49.59

17

06.1.43.00.030

Front Gearbox

$68.52

18

10.01.08.1.113

Outer Hexagon Half-Tooth Bolt

$3.86

18

10.12.08.1.102

Plain Washer(same as 10.12.08.1.101)

$1.29

18

10.13.04.104

Spring Washer

$1.29

19

10.01.08.1.106

Outer Hexagon Bolt

$2.58

19

10.12.08.1.101

Plate

$1.29

19

10.13.04.104

Spring Washer

$1.29

20

10.22.40.2.001

Seal

$2.29

21

10.15.07.1.047

Deep Groove Ball Bearing

$9.42

22

06.1.43.00.034

Big Gear

$76.12
