  • SNOW BLOWER 30IN KC21-02CA

KIT PRODUCT

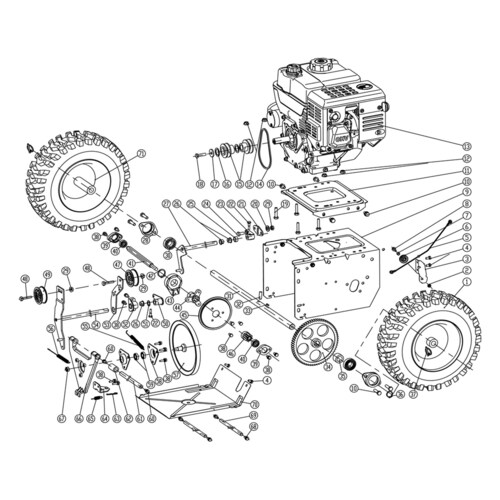

SNOW BLOWER 30IN KC21-02CA

REF#
SKU
DESCRIPTION
PRICE
QTY

1

14X4.60-6

14*4.6-6 Tyre

$67.92

2

GB/T899.1-2000

Hex Bolt M6

$1.00

3

KCM24-02C-19

Pulley Seat

$3.50

4

GB/T9074.13-1988

Hex Bolt M6X12

$1.00

5

KC21-02C-01

Short Wire

$5.40

6

KC40-28

Pulley

$3.10

7

KC21-02-2

Shaft Bushing

$0.80

8

GB/T5780-2000

Hex Bolt M6X20

$1.00

9

KCD21-02-01A

Box Assembly

$88.50

11

KC21-02C-03

Engine Seat

$24.22

12

DIN6927

Hex Screw M8

$1.00

13

LC180FDS

Engine

$0.00

14

3LXP825

Belt

$44.24

15

KC21-02-26B

Primary Sheave

$17.01

15

KC21-02-26C

Primary Sheave

$10.71

16

KC21-02-30C

Primary Sheave Washer

$1.70

17

GB/T5287-2002

Big Washer 8

$1.00

18

GB/T5786-2000

Bolt M10*1.25*25

$5.00

19

GB/T5780-2000

Hex Bolt M6X20

$1.00

20

GB/T95-2002

Washer 8

$1.00

21

KC21-02-05

Gear Adjust Plate

$2.30

22

GB/T9074.17-2000

Hex Bolt M6X20

$1.00

23

KC21-02-06A

Gear Connector

$8.40

24

GB/T5780-2000

Hex Bolt M6X20

$1.00

25

KC21-02-34

Pad

$1.40

26

KC90-02-07

Plastic Shaft Bushing

$1.30

27

KC55-02-05

Fork

$11.83

28

KC90-02-11

Bearing Seat

$6.30

29

GB/T899.1-200

Hex Bolt M8

$1.00

30

GB/T276-1997

Ball Bearing 6304

$5.10

31

KC21-02C-06C

14 in. Driving Shaft

$40.74

32

GB/T879.2-2000

Spring Pin ¢6X30

$1.00

33

GB/T1905-2003

Parallel Key 6X6X22

$1.00

34

KC21-02C-07

Big Gear

$37.38

35

KC21-02C-08

Shaft Bushing

$4.90

36

GB894.2-86

Spring Washer 20

$1.00

37

KCW-03

D Pin 6X40

$7.80

38

GB/T9074.13-1988

Hex Bolt M6X12

$1.00

39

KC21-02-33

Bearing Seat

$8.40

40

GB/T276-1994

Bearing 16007

$6.60

41

KC21-02-24

Hex Shaft

$10.29

42

GB/T894.1-1986

Spring Washer 25

$1.00

43

KC21-02-13

Shaft

$17.50

44

KC21-02-12B

Rubber Pulley Seat

$21.07

45

KC21-02-11A

Rubber Pulley

$17.71

46

KC21-02-25

Gear

$14.63

47

KC55-02-21A

Small Tension Pulley

$8.61

48

GB/T5780-2000

Hex Bolt M6X20

$1.00

49

KC55-02-21

Small Tension Pulley

$8.47

50

KC30A-02-31

Tension Connector

$8.00

51

GB/T955-1987

Spring Washer ¢12

$1.00

52

KC21-02C-09

Fixex Block

$8.20

53

KC30A-02A-4

Small Tension Plate

$13.09

54

KC21-02C-11

Big Tension Plate Assembly

$9.80

55

KC90-02-15

Spring

$3.30

56

KC21-02C-12

Brake Spring

$1.70

57

KC21-02C-13

Belt Pulley

$32.06

58

KC90-02-12

Bearing Seat

$3.60

59

GB/T276-1997

Ball Bearing 6304

$5.10

60

GB/T9074.13-1988

Hex Bolt M6X12

$1.00

61

KC90-02-31

Strut Bar

$5.00

62

KC55-02-10

Spacer Bush

$1.50

63

S03*00493

B Pin ¢1.5X25

$1.00

64

KC21-02C-14

Connecting Plate Assembly

$2.50

65

KC21-02C-17

Spring

$1.10

66

KC21-02C-15

Bracket For Fric Disc

$25.06

67

GB/T899.1-2000

Hex Bolt M6

$1.00

68

GB/T 6563-1986

Hex Bolt M8X20

$1.00

69

KC30A-02-30

Strut Bar

$4.40

70

KC21-02C-16

Bottom Plate

$9.38

71

625Z0101

Wheel Hub

$62.16
