  • MXU 1000 STEERING SYSTEM

KIT PRODUCT

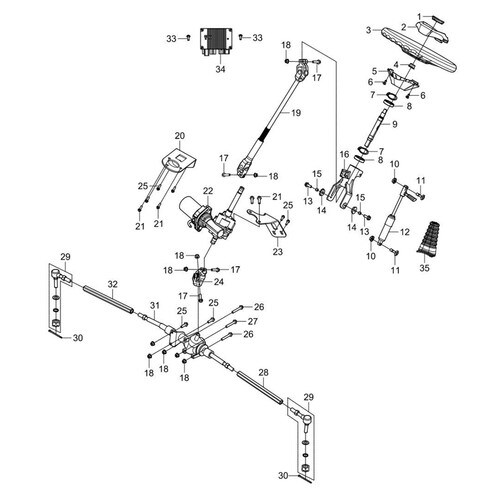

MXU 1000 STEERING SYSTEM

REF#
SKU
DESCRIPTION
PRICE
QTY

1

15105090020

Steering Wheel Center Cap

$3.00

2

15105090050

Steering Wheel Cover

$9.00

3

13205090080

Steering Wheel

$71.40

4

04622120026

Bushing

$3.00

5

15105090060

Steering Wheel Cover

$9.00

6

03714350101

Tapping Screws St3.5X10

$3.00

7

07031200007

Washer 20

$3.00

8

09560061804

Bearing 61804-2Rz

$9.80

9

13205090041

Steering Shaft

$37.80

10

04612060026

Hex Flange Locking Nut 6

$3.00

11

01824060126

T Bolt 6X12

$3.00

12

13208400001

Gas Spring

$49.00

13

01224080256

Flange Bolt

$3.00

16

13205050000

Adjustable Steering Column

$51.10

17

01224080356

Flange Bolt

$3.00

18

04612080026

Hex Flange Locking Nut 8

$3.00

19

16605270030

Steering Shaft

$87.36

20

14605270040

Lower Bracket, EPS Motor

$32.90

21

01224080166

Flange Bolt M8X16

$3.00

22

14605270010

EPS Motor

$370.20

23

14605270060

Upper Bracket, EPS Motor

$26.60

24

13205270021

EPS Universal Joint

$18.20

25

01224080206

Hex Flange Bolt 8×20

$3.00

26

01214080956

Hex Flange Bolt 8x95

$3.00

27

01214080806

Hex Flange Bolt 8x80

$3.00

28

10105100070

Steering Tie Rodr, Lh

$13.30

29

10905100081

STEERING TIE ROD BALL JOINT

$27.95

30

05011320255

Bushing

$3.00

32

10105100000

Redirector Assembly

$89.88

33

01254060126

Lock Nut

$3.00

34

13205270052

EPS Module Controller

$228.90

35

16605050130

Gas Spring Boot

$14.00
