KIT PRODUCT

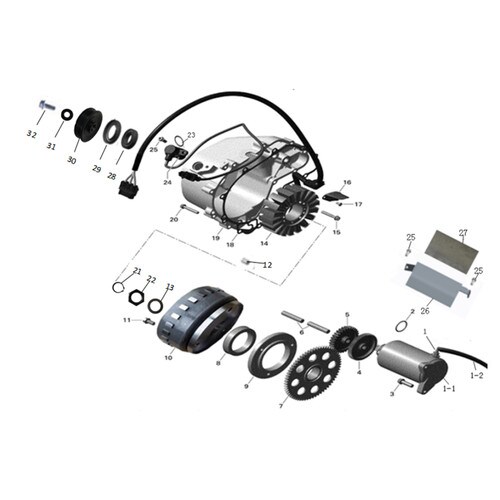

MXU 1000 STARTER

REF#
SKU
DESCRIPTION
PRICE
QTY

1

21040109100

STARTER ASSEMBLY

$216.00

1-1

21040109114

STARTER (WITHOUT WIRE)

$195.60

1-2

21040109113

STARTER WIRE HARESS,1.8M

$48.25

2

21040109118

O RING

$1.75

3

02224080251

Plug

$3.00

4

21040109201

DOUBLE GEAR

$26.75

5

21040109301

INTERMEDIATE GEAR

$18.95

6

21040105901

LOCATION PIN

$1.75

7

21040109401

FREE WHEEL GEAR ASSEMBLY

$84.30

8

21040109501

SPRAG CLUTCH

$92.90

9

21040109601

HOUSING SPRAG CLUTCH

$48.25

10

21041000701

Flywheel (Used With 21040109702)

$288.45

11

03344080161

Flanged screw 8X16

$3.00

12

21020803301

Dowel pin 8_14

$1.75

15

01224060351

Flange Bolt

$3.00

16

21040110101

COVER-CABLE INNER

$1.75

17

03113040081

Plug

$3.00

18

21040111302

Gasket

$8.00

19

22040110203

Cover

$89.40

20

01224060351

Flange Bolt

$3.00

21

21160201201

Elastic Snap Ring 20

$3.00

22

21140209101

Nut

$10.25

23

21040111001

O RING

$1.75

24

21040110901

CRANK POSITION TRIGGER

$48.25

25

01224060161

Flange Bolt

$3.00

26

21140301301

Hexagonal Screw M10X 61

$4.95

27

10414130010

HEAT INSULATION FILM (THIN)

$29.95

29

21020200401

DUST SEAL 20x32x6

$6.95

30

21041000102

Belt Pulley Ø55

$37.80

32

01224100201

Hexagon Flange Bolt

$3.00

33

01224060404

Flanged Torx Screw M6x40

$3.00
