KIT PRODUCT

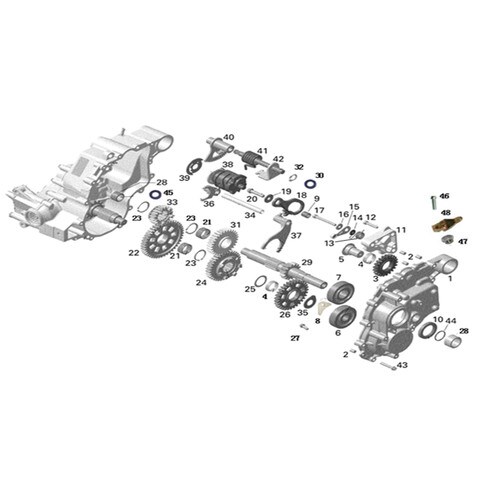

MSU 800-5 GEAR BOX 1

REF#
SKU
DESCRIPTION
PRICE
QTY

1

21040202501

GEAR HOUSING LEFT COVER

$108.25

2

21040105401

PIN-CENTER

$1.75

3

21040202601

INTERMEDIATE GEAR 21TH

$37.45

4

10031252910

BEARING-NEEDLE

$14.85

5

21040202801

INTERMEDIATE GEAR SHAFT

$39.25

6

09160006403

Bushing

$62.40

7

09160006305

Bushing

$22.40

8

21040203001

BEARING SET PLATE

$1.75

9

21040203101

SLEEVE OF LOCK LEVER

$9.95

10

21040201801

SEAL-OIL

$10.25

11

21040203201

SUPPORT FLANGE

$18.75

12

03344060301

Bushing

$3.00

13

21040203301

STOPPER ARM RETURN SPRING

$1.75

14

21040203401

STEP RING

$4.95

15

21040203501

STOPPER ARM

$33.95

16

21040203601

STOPPED ARM WASHER

$1.75

17

03344060551

Bushing

$3.00

18

21040203701

PARKING LOCK LEVEL ASSEMBLY

$31.25

19

21040203801

WASHER

$1.75

20

01224080351

Flange Bolt

$3.00

21

10032252913

BEARING-NEEDLE

$14.85

22

21040204001

REVEL LOW RANGE GEAR 43TH

$82.85

23

07021271204

Bushing

$4.00

24

21040204201

REVEL HIGH RANGE GEAR 34TH

$91.25

25

06224253404

Bushing

$4.00

26

21040204401

REVEL REVERSE GEAR 31TH

$73.95

27

01224060161

Flange Bolt

$3.00

28

21040201601

RING-DISTANCE

$4.85

29

21040204501

COUNTER SHAFT

$136.85

30

21040205801

WASHER

$1.75

31

21040204601

MAIN HIGH RANGE GEAR 29TH

$84.25

32

07021121004

Bushing

$3.00

33

21040204701

MAIN LOW RANGE GEAR 20TH

$73.95

34

21040204801

FORK SPINDLE

$8.85

35

21040204901

THRUST WASHER SET

$2.35

36

21040205001

LITTLE SHIFT FORK

$68.85

37

21040205101

BIG SHIFT FORK

$72.85

38

21040205201

SHIFT DRUM ASSEMBLY

$108.25

39

21040205301

ISOLATING WASHER

$4.95

40

21040205401

SHIFTING GEAR

$12.25

41

21040205501

RETURN SPRING

$11.85

42

21040205601

GEAR SHIFT SPINDLE

$12.85

43

01224060351

Flange Bolt

$3.00

44

21040201501

O -RING

$1.75

45

21040206702

WASHER

$2.35

46

01224060251

Shaft Mount

$3.00

47

04112060021

Bushing

$3.00

48

21040206001

SHIFT ARM

$6.85
