Specifications
Dimensions

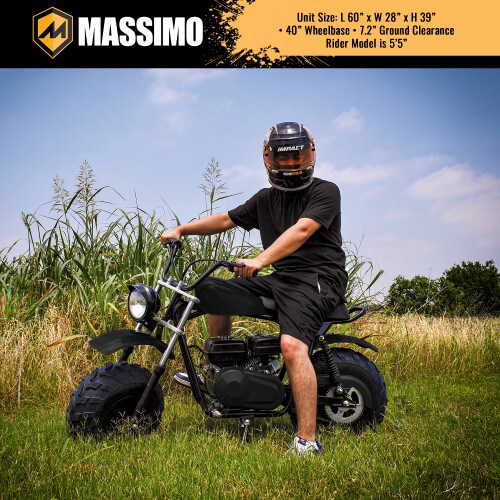

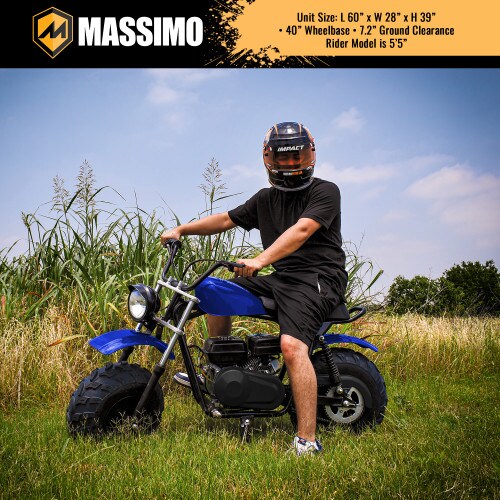

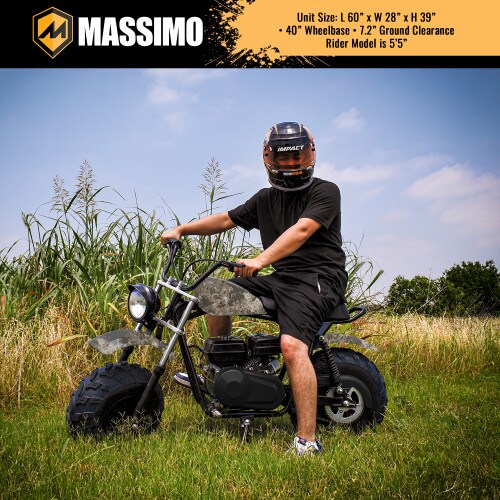

Vehicle Size (L X W X H): 60 in x 28 in x 39 in
Wheel base: 40 in
Ground Clearance: 7.2 in
Weight: 172 lbs
Gas Tank Capacity: 1 Gal
Tire: 19x7.00-8 in

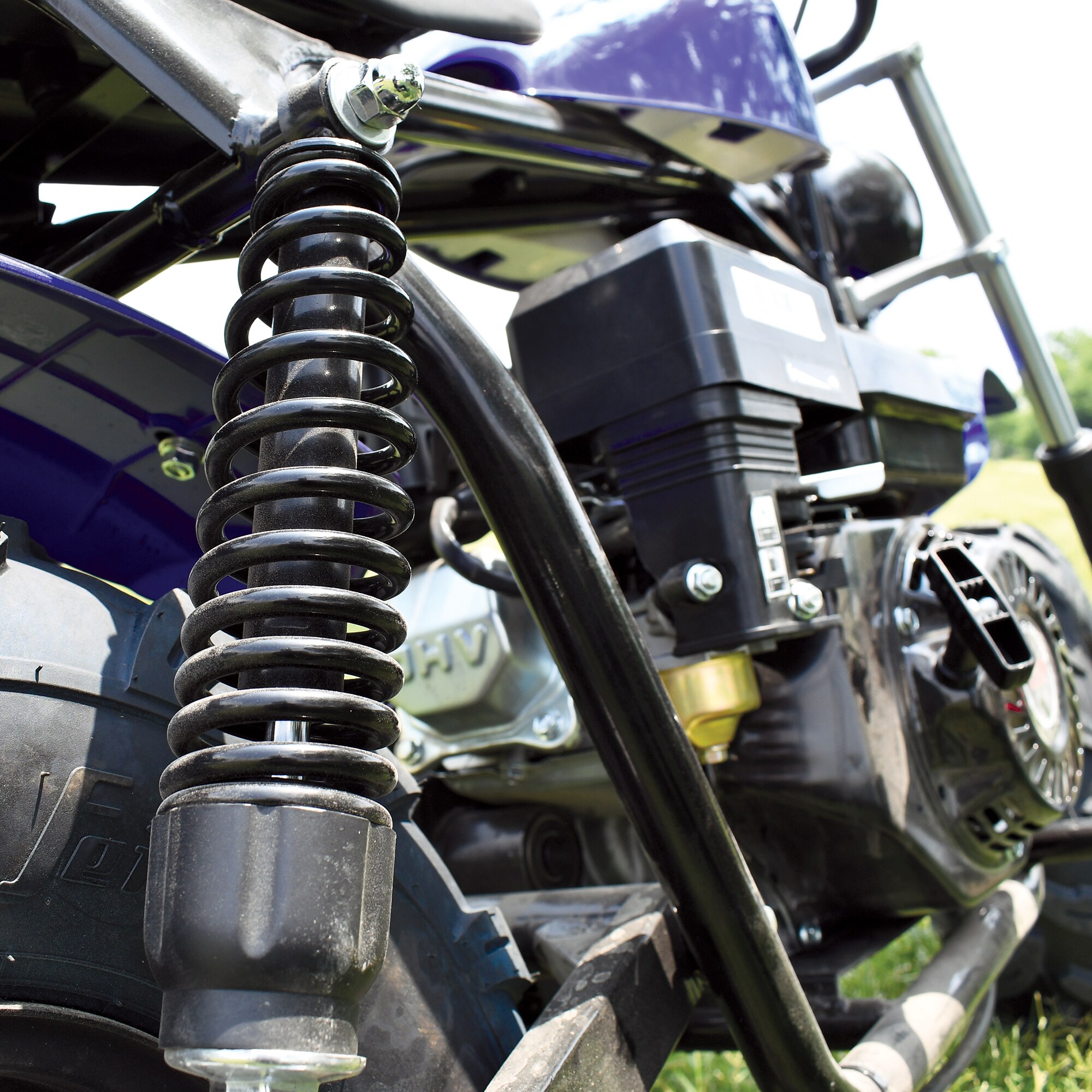

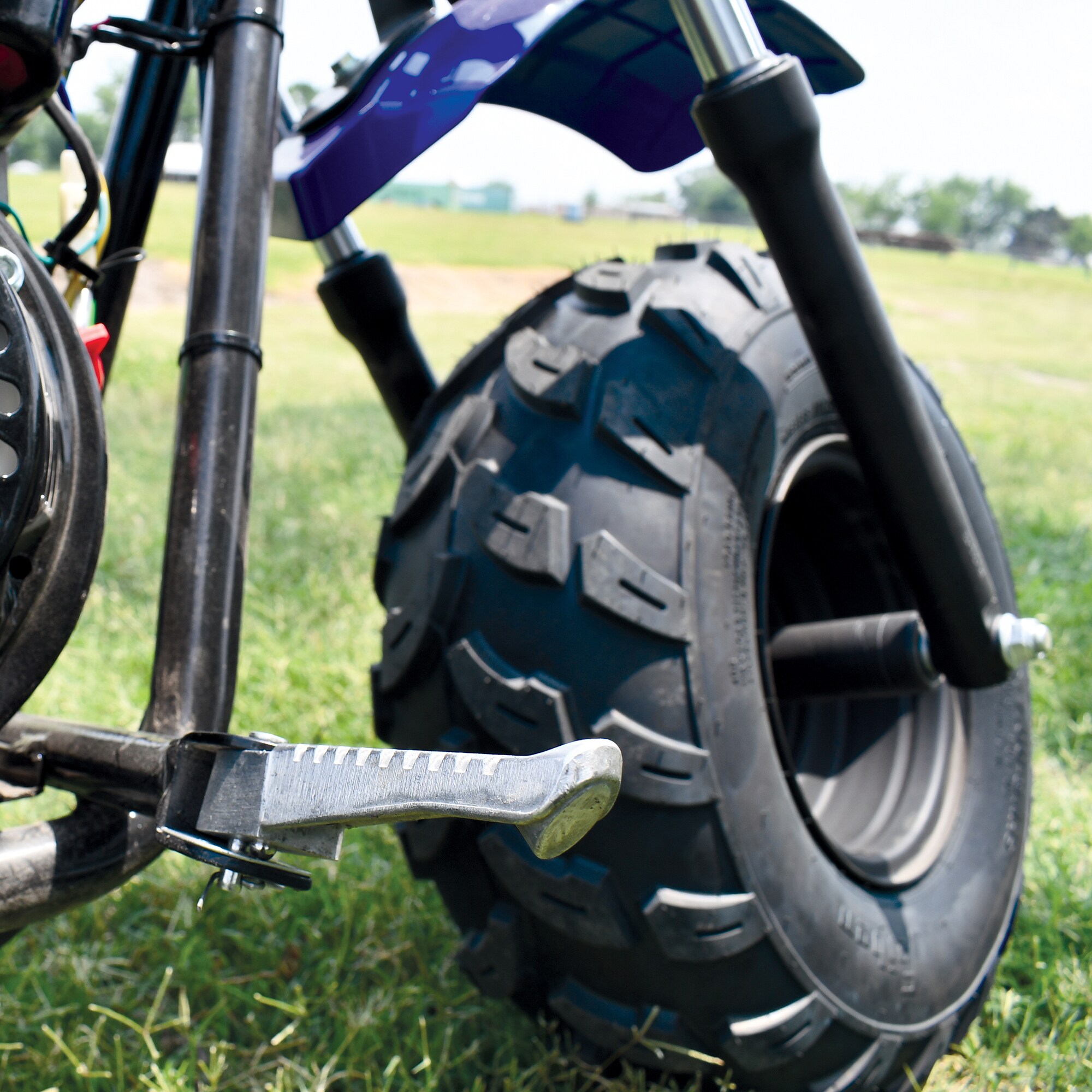

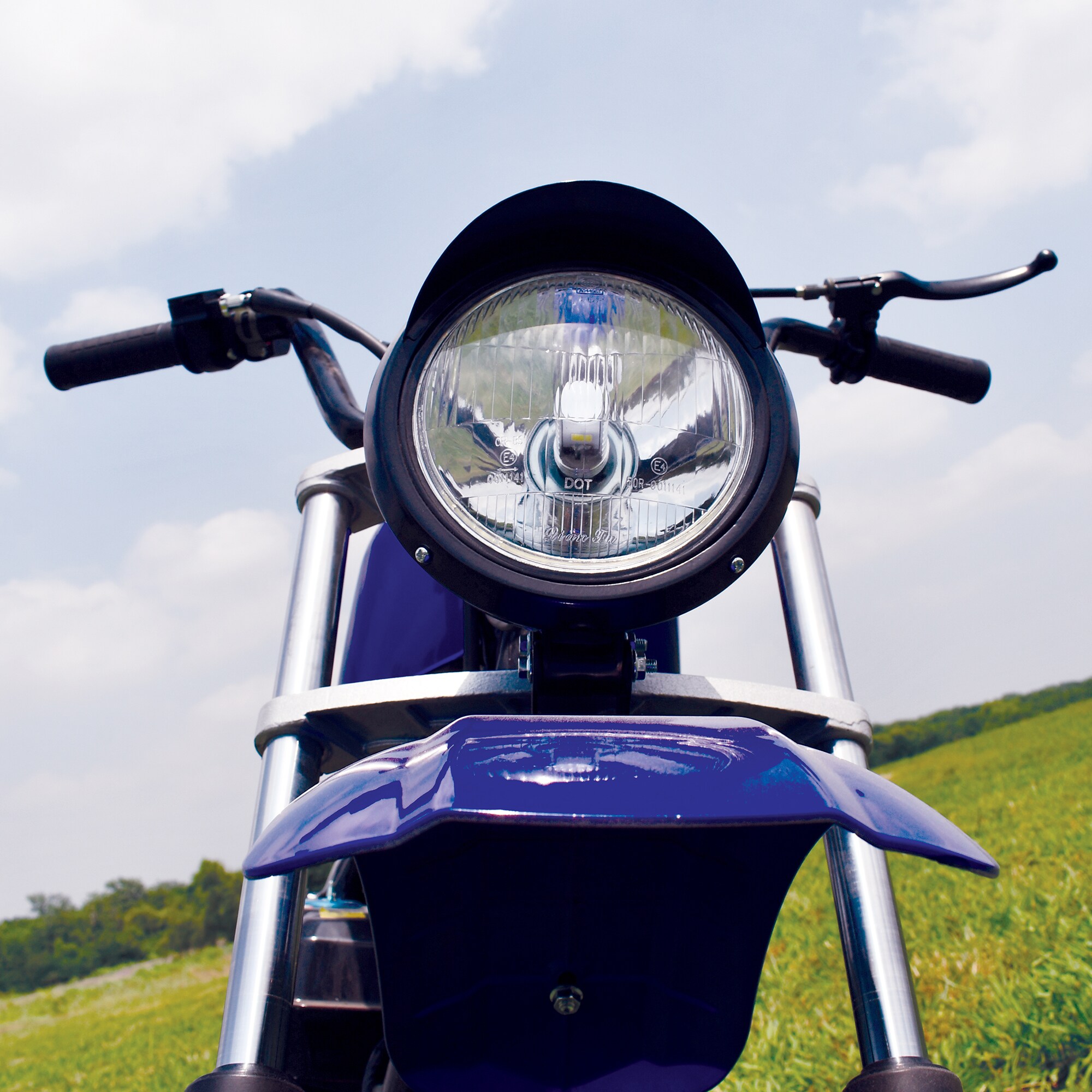

Close-Up
Power
Engine Type: Air-cooled, four stroke, single cylinder
Displacement: 196 cc
Bore x Stroke: 68x54mm
Max Power Output: 6.5 HP
Rated Power Output: 5.8 HP
Torque: 9.7 ft/lb
Starting System: Hand pull-Recoil
Brake System: Rear Drum
Rim: Steel
Max Load: 220 lbs
Max Speed: 25 mph
