KIT PRODUCT

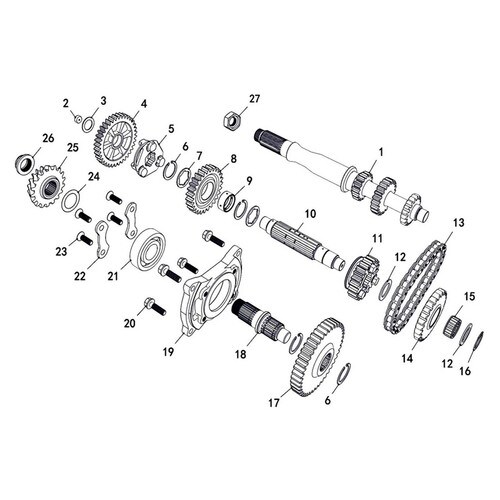

MSA 550 TRANSMISSION 1

REF#
SKU
DESCRIPTION
PRICE
QTY

1

35320

Main Gearshift Shaft

$214.66

2

35309

Bell Plug 12mm

$7.35

3

35307

Washer 17.5x26x1mm

$1.40

4

35318

Low Range Driven Gear

$97.74

5

35314

Gearshift Sliding Bushing

$46.97

6

35311

Circlip 25mm

$0.60

7

35310

Spline Washer

$1.40

8

35316

High Range Driven Gear

$89.10

9

35317

High Range Gear Bushing

$10.50

10

35315

Driven Shaft

$69.00

11

35308

Output Driven Gear

$80.52

12

35312

Washer 20.5x30x1.5mm

$1.60

13

35313

Reverse Gear Chain

$61.26

14

35319

Reverse Gear Sprocket

$74.76

15

10858

Needle Bearing K20x26x12

$9.94

16

24407

Circlip 20mm

$0.90

17

35271

Output Gear

$115.33

18

35276

Bevel Gear Drive Shaft

$77.64

19

35274

Bevel Gear Bearing Seat

$24.78

20

35286

Bolt M8x28

$0.90

21

10855

Bearing 6305C3

$59.78

22

35287

Bearing Stopper

$11.76

23

10276

M8x25mm Screw

$2.04

24

35277

Washer, Bevel Gear Adjustment

$1.70

25

35272

Bevel Gear

$87.49

26

35275

Bevel Gear Locknut

$6.90

27

35294

Lock Nut, M20x1.5

$9.74
