KIT PRODUCT

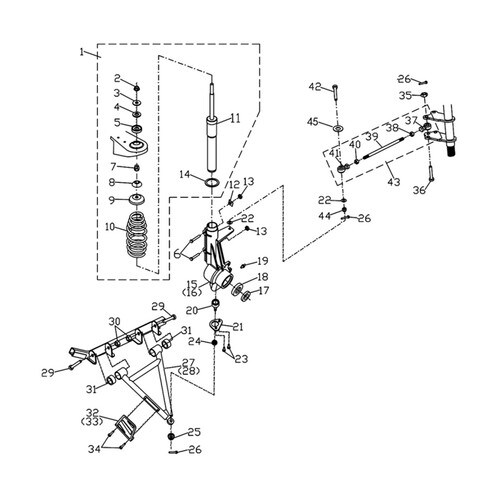

MSA 400 SHOCK ABSORBER FRONT

REF#
SKU
DESCRIPTION
PRICE
QTY

1

27848

Front Shock Absorber Assembly

$126.92

2

10091

Nut M14X1.5

$1.70

3

21802

Washer 14

$0.60

4

21803

Spacer Rubber

$1.10

5

21804

Upper Pivot Ball

$14.98

6

10093

Bolt M8X55

$1.00

7

21806

Nut M14X1.5

$5.40

8

21807

Lower Pivot Ball

$14.98

9

21808

Spring Retainer

$10.50

10

27849

Spring

$60.20

11

26908

Strut Bumper

$99.08

12

21811

CLAMP

$1.70

13

10079

NUT M8X1.25

$0.80

14

21813

Spring Retainer

$0.60

15

47048

Strut Body Left

$126.96

16

47049

Strut Body Right

$126.96

17

26912

Retaining ring for hole

$0.60

18

26913

Bearing

$126.36

19

27074

Grease Fitting M6

$1.60

20

20512

Ball Joint Stud

$17.99

21

20513

Ball Joint Mounting Bracket

$3.80

22

10019

Washr 10

$0.60

23

10022

Bolt M6X12

$1.10

24

10019

Washr 10

$0.60

25

27067

Nut M10x1.25

$1.50

26

27215

Cotter Pin 2.5x25

$0.60

27

20518F

A-ARM LEFT

$100.38

28

20627F

A-Arm Right

$100.38

29

20522f

A-ARM PIVOT SHAFT

$12.04

30

10136

NUT M12X1.25

$1.60

31

20524F

BUSHING

$11.27

32

20519

Front left axle stop

$4.50

33

20628

Front right shaft blank

$4.50

34

10001

Screw M5X12

$1.10

35

10015

NUT M10X1.25

$1.20

36

27794

Bolt M10X1.25X57

$2.60

37

20503

Tie Rod End A

$36.05

38

10017

Nut M12×1.25×11

$1.70

39

20505

Tie Rod

$67.55

40

20506

Jam Nut(Left)

$0.80

41

20507

Tie Rod End B

$36.05

42

46192

Bolt M10X1.25X65

$3.00

42

20629

Tie Rod Assy

$69.48

44

10015

NUT M10X1.25

$1.20

45

11357

Big Washer 10

$0.60
