KIT PRODUCT

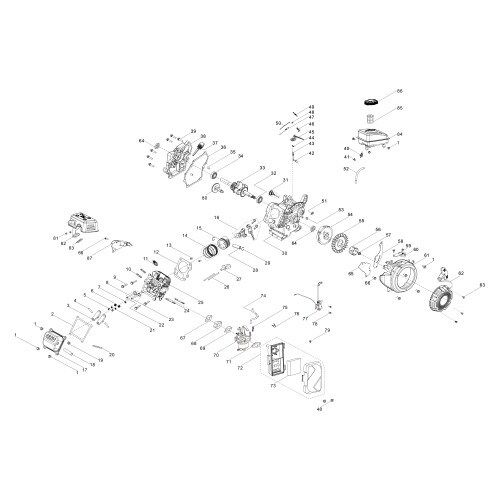

MB 100 ENGINE PARTS

REF#
SKU
DESCRIPTION
PRICE
QTY

8

12110-Z0M0110-00A0

Valves Set

$16.80

9

12003-Z510110-00A0

Cylinder Head Bolt

$2.40

10

90203-Z010110-0000

Stud Bolt

$2.40

11

30010-Z350210-00A0

Plug, Spark

$13.44

12

12131-Z210110-00A0

Gasket, Cylinder Head

$9.60

13

90502-0814-00A0

Position Pin

$0.96

14

13200-Z450210-00A0

Ring Assy, Piston

$16.80

15

13111-Z0M0110-00A0

Piston

$16.80

16

13010-Z210110-00A0

Rod, Connecting

$20.16

17

12410-Z0M0110-0000

Cover Subassembly, Cylinder Head

$16.80

18

17004-Z0M0310-00A0

Tube, Breather

$1.92

19

90001-0614-01A0

Bolt

$0.96

20

90684-Z030120-0000

Wire Clip

$1.60

21

12112-Z810210-00A0

Seat, Valve Spring

$2.40

22

12111-Z0M0110-00A0

Valve, Exhaust

$11.20

23

12121-Z0M0110-00A0

Valve, Intake

$8.40

24

90204-Z010210-0000

Stud Bolt

$3.20

25

12140-Z0M0110-0BA0

Head Subassembly, Cylinder

$72.00

26

14071-Z0M0110-00A0

Lifter, Valve

$4.80

27

14081-Z010110-00A0

Tappet, Valve

$4.80

28

13121-Z450110-00A0

Pin, Piston

$4.80

29

13122-Z450110-00A0

Clip, Piston Pin

$0.80

30

11310-Z210412-0BA0

Crankcase Subassembly.

$115.20

31

16400-Z210110-00A0

Gear Assy, Governor

$16.80

32

90548-0203-CLA0

Deep Groove Ball Bearing

$8.96

33

13300-Z212010-00A0

Crankshaft Assy.

$72.00

34

90548-0303-CLA0

Deep Groove Ball Bearing - P53

$13.44

35

90502-0812-00A0

Position Pin

$0.96

36

11001-Z510130-00A0

Gasket, Crankcase

$9.60

37

15010-Z510140-Q500

Dipstick Subassembly, Oil

$3.20

38

11411-Z510111-0BA0

Cover, Crankcase

$44.80

39

90001-0625-01A0

Bolt

$1.12

40

16680-Z010110-00A0

Outlet Subassembly, Fuel Tank Oil

$4.80

41

90740-Z010210-00A0

Collar

$0.96

42

16061-Z510210-00A0

Arm, Governor

$4.80

43

90408-Z010210-00A0

Flat Washer

$0.96

44

90501-Z010110-00A0

Cotter Pin

$0.96

45

16070-Z510210-0000

Governor Bracket Subassembly

$5.60

46

16072-Z010110-00A0

Bolt, Governor Support

$1.60

47

16012-Z0M0210-00A0

Spring, Throttle Valve Returning

$1.92

48

90305-0600-31A0

Hexagon Nut With Flange

$0.96

49

16063-Z0M0110-0000

Spring, Governor

$1.20

50

16062-Z0M0110-00A0

Rod, Governeor

$1.28

51

11007-Z010110-00A0

Bolt, Drain Plug

$2.24

52

30431-Z010110-0000

Jacket, Rubber

$1.12

53

90408-Z010110-00A0

Flat Washer

$1.12

54

13510-Z510110-00A0

Flywheel Subassembly

$50.40

55

19352-Z510110-00A1

Impeller

$8.00

56

28002-Z510110-0001

Pulley,Starter

$8.00

57

13501-Z510110-00A0

Nut, Flywheel

$1.92

58

30028-Z510110-0000

Shield, Shroud

$4.80

59

90001-0608-01A0

Bolt

$1.12

60

16520-Z510510-0000

Control Assy, Throttle

$4.80

61

28110-Z510110-H600

Shroud

$22.40

62

28200-Z510210-H600

Starter Assy, Recoil

$33.60

63

90001-0608-01

Bolt And Flat Washer Assembly

$0.72

64

90682-Z510110-00A0

Seal, Oil

$5.60

65

19306-Z510110-0000

Deflector, Crankcase Air

$4.80

66

90001-0610-01A0

Hexagon Socket Flange Face Bolt - SM

$0.96

67

17002-Z510110-00A0

Gasket, Inlet

$1.12

68

16003-Z510210-00A0

Plate, Carburetor Insulator

$4.80

69

16001-Z510110-00A0

Carburetor Seal Gasket

$1.12

70

16100-Z0M1210-00A0

Carburetor Assy.

$67.20

71

17001-Z510110-00A0

Air Cleaner Seal Gasket

$1.28

72

17100-Z0M0410-0000

Air Cleaner

$16.80

73

17151-Z0M0110-0000

Element, Air Cleaner

$3.20

74

90686-Z510910-00M1

Tube, Fuel

$7.84

75

16652-Z800110-00A0

Strainer, Fuel

$2.40

76

90740-Z010610-00A0

Collar

$1.12

77

30400-Z0M0211-0001

Coil, Ignition

$44.80

78

90001-0620-01A0

Bolt

$1.12

79

90684-Z250110-0000

Wire Clip

$1.60

80

14200-Z0M0110-00A0

Camshaft Assy.

$39.20

81

90303-0800-31A0

Hexagon Nut

$1.12

82

18100-Z0M0310-00A0

Muffler Assy.

$61.60

83

18001-Z510110-00A0

Gasket, Exhaust Outlet

$1.44

84

16620-Z510810-H6A0

Fuel Tank

$56.00

85

16652-Z0M0110-00A0

Strainer, Fuel

$4.80

86

16730-Z440410-0000

Cover, Fuel Tank

$9.60

87

19304-Z510310-0000

Shroud, Cylinder Body

$8.00
