Specifications

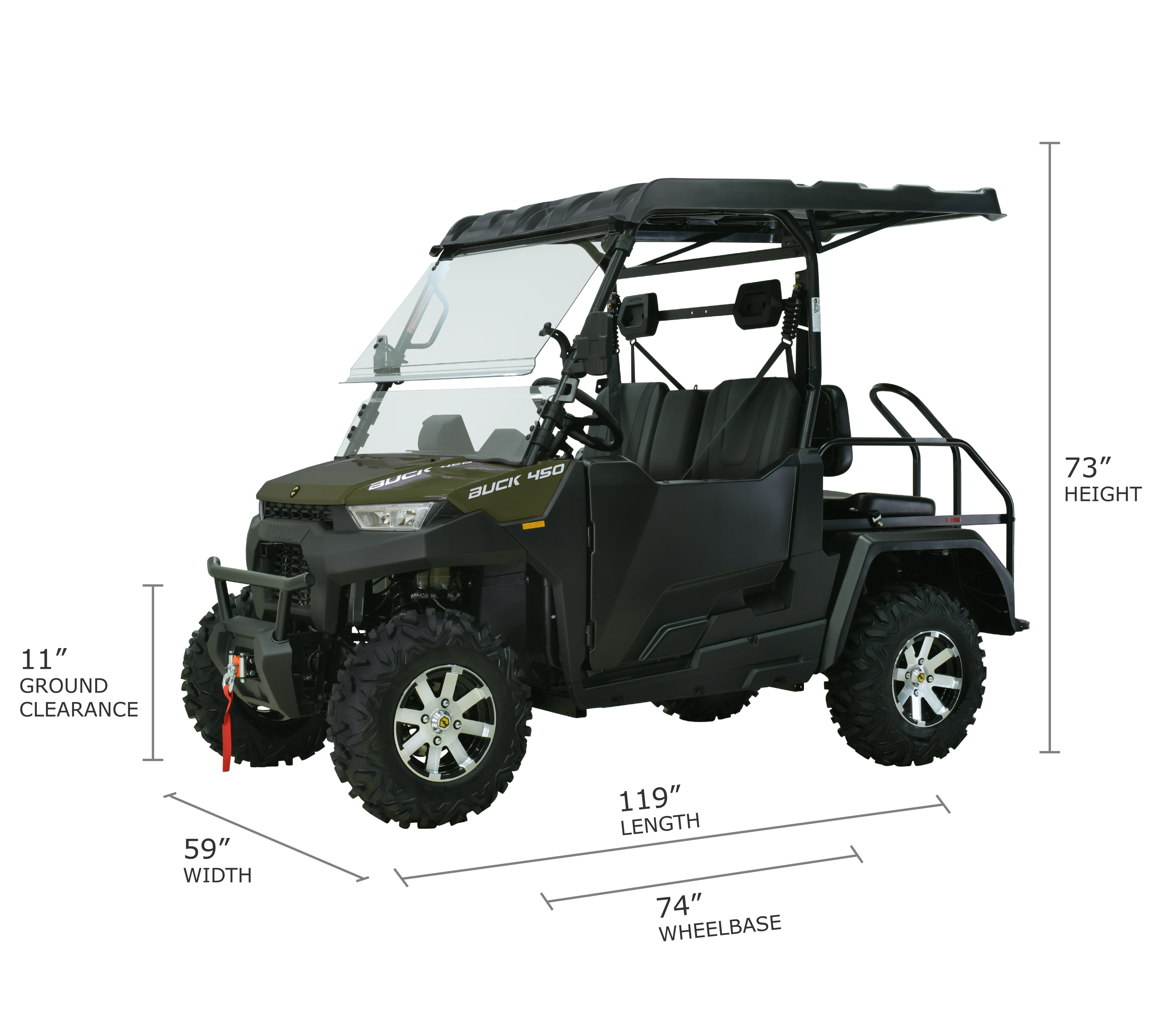

Dimensions
VEHICLE SIZE (L X W X H): 119 IN X 59 IN X 80.5 IN
WHEELBASE: 74 IN
GROUND CLEARANCE: 11 IN
FUEL CAPACITY: 6.8 GALLONS
SEAT HEIGHT: 33.5 IN
DRY WEIGHT: 1113 LBS
4 STROKE SINGLE CYLINDER
ENGINE TYPE: FOUR STROKE SINGLE CYLINDER
DISPLACEMENT: 352CC
HORSEPOWER: 25 HP
COOLING: LIQUID COOLED
TRANSMISSION/FINAL DRIVE: AUTOMATIC CVT P/R/N/L/H,
SHAFT DRIVE
DRIVE SYSTEM: ON DEMAND 2WD/4WD, LOCKING DIFFERENTIAL
FUEL SYSTEM: ELECTRONIC FUEL INJECTION(EFI)
CHASSIS
• FRONT SUSPENSION: TWIN-A ARM INDEPENDENT SUSPENSION
• REAR SUSPENSION: TWIN-A ARM INDEPENDENT SUSPENSION
• FRONT TIRES: AT 25X 8-12
• REAR TIRES: AT 25X 10-12
• FRONT BRAKES: HYDRAULIC DISK BRAKES WITH DRILLED AND SLOTTED VENTED ROTORS AND SINGLE PISTON CALIPERS
• REAR BRAKES: SINGLE HYDRAULIC DISK BRAKE WITH SINGLE PISTON CALIPER
ADDITIONAL FEATURES
WARRANTY: 1 YEAR PARTS & LABOR
BATTERY: 12V 35AMP
ASSEMBLED IN TEXAS, USA
STANDARD FEATURES: ROOF, SIDE MIRRORS,
WINDSHIELD, 3000 LB WINCH
INSTRUMENTATION: DIGITAL DISPLAY, SPEEDOMETER,
ODOMETER, TACHOMETER, HOUR METER, GEAR INDICATOR,
4WD INDICATOR, DIFFERENTIAL LOCK INDICATOR,
TRIP METER, HEADLIGHTS (HIGH/LOW), TURN SIGNALS, FUEL GAUGE, HI-TEMP
Interior

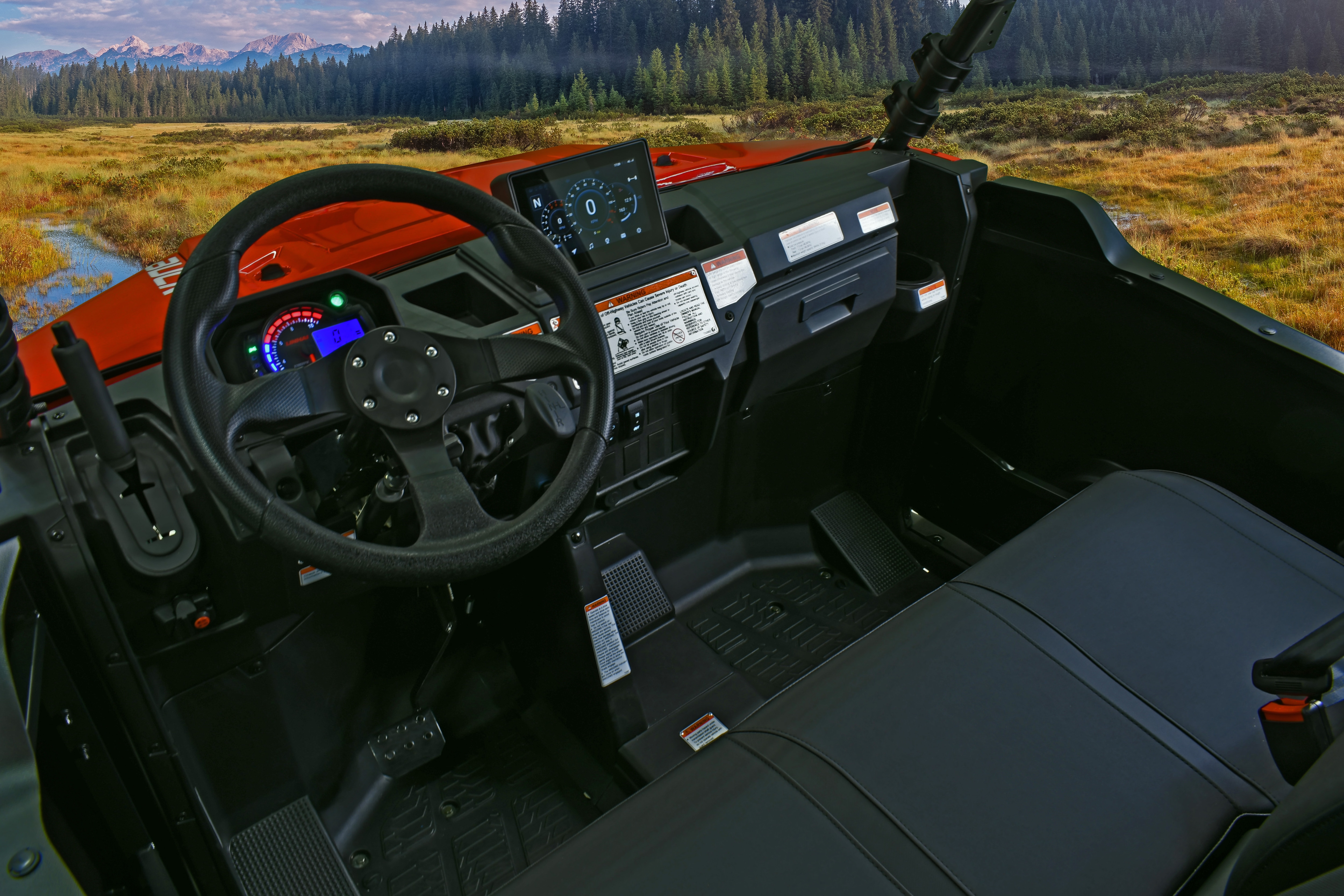

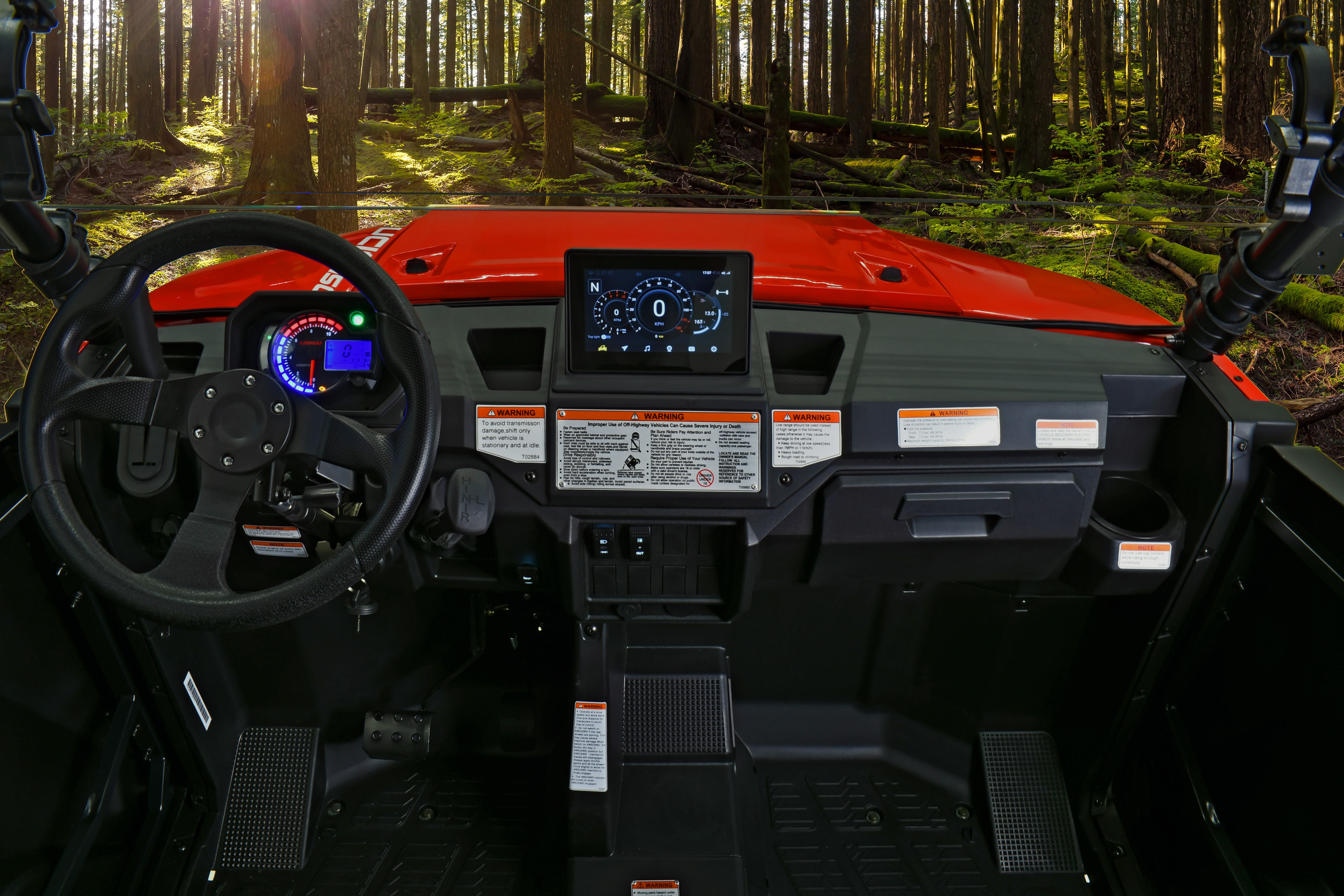

Cabin View

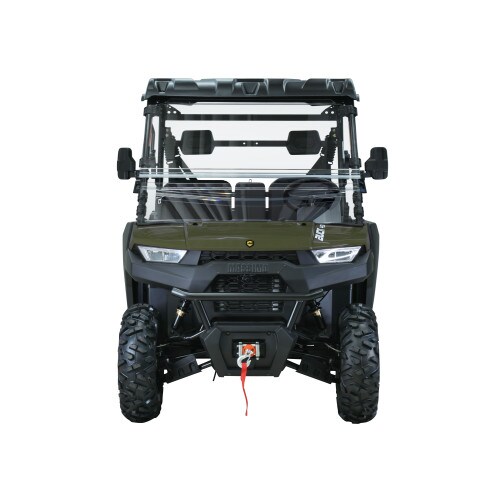

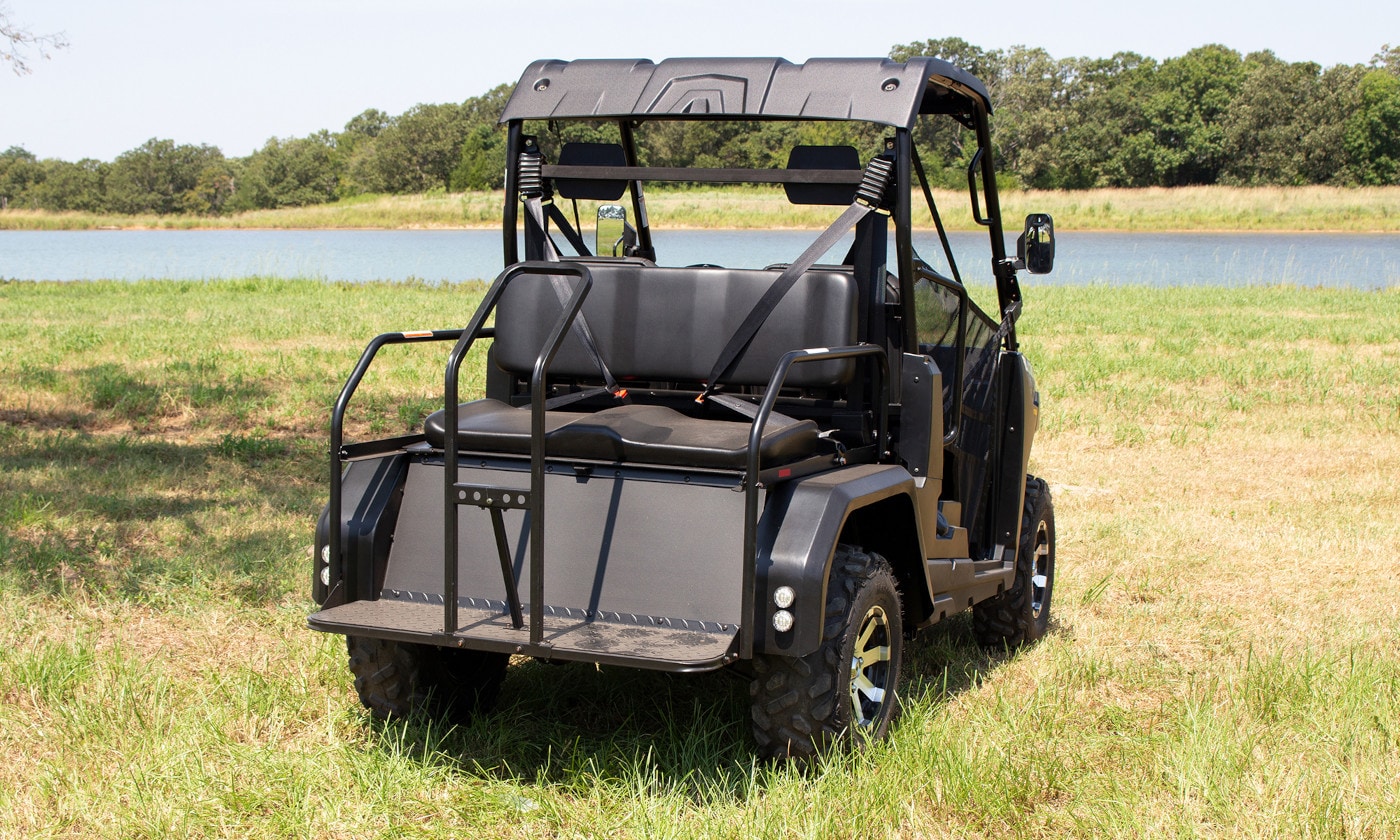

Photo Gallery
