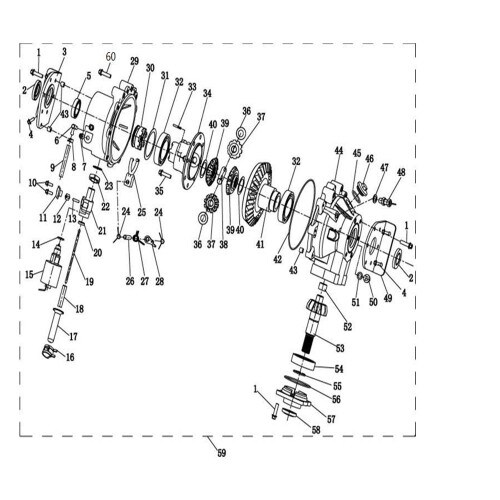

T-BOSS 1100D FRONT GEARCASE EXPLODED VIEW

REF#
SKU
DESCRIPTION
PRICE
QTY

1

10059

Bolt M8x25

$1.10

2

73016

Oil Seal 30X50X6.5

$18.06

4

10124

Bolt M8X35

$1.10

5

10808

Bearing

$20.30

6

21112

Vent Nozzle

$1.50

8

25107

Clip

$1.60

9

21111

Vent Pipe

$1.60

10

10010

Bolt M6X15

$1.00

12

73026

Rock Arm

13

10789

Parallel Pin

14

73013

O-Ring 17x3

$5.00

15

71978

Electromagnetic Valve Assembly

$150.00

16

71358

Clamp 13

$4.90

22

73019

Nut M20x1.5

23

73027

Washer

24

73040

Shift Return Spring

$1.20

25

73041

Shift Yoke

$29.19

26

73039

Shift Bar

27

73038

Shift Lever Spring

$7.90

28

73029

Shift Lever

30

73030

Clutch Gear

$91.26

31

21106

Adjusting Shim

$1.70

32

10056

Bearing 110

$30.59

34

73033

Diff Case

36

73036

Wearing Ring

$2.10

37

73035

Planetary Gear

$35.00

38

73032

Gear Shaft

$17.50

39

73031

Diff Side Gear

$64.19

43

21104

Dowel Pin

$1.60

45

50082

O-Ring 30.5x3

$0.90

46

24305

Fill Plug

$3.40

47

29613

Washer

48

73435

Speed Sensor

$68.10

50

73020

Drain Bolt

$3.30

51

73021

Washer

$0.80

59

84214

Front Gearcase Assy.

60

10060

Bolt M8x28

$1.00
