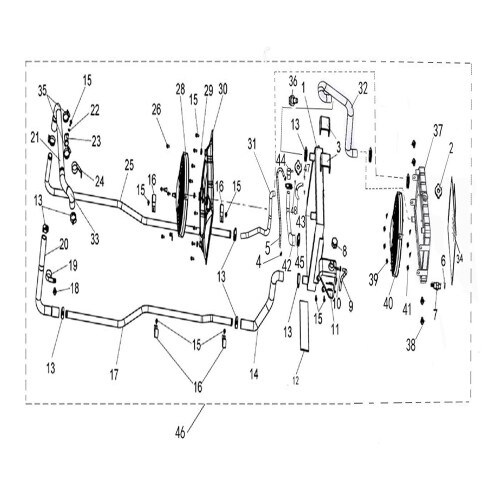

T-BOSS 1100D COOLING SYSTEM EXPLODED VIEW

REF#
SKU
DESCRIPTION
PRICE
QTY

1

86375

Radiator A

2

22907

Safety Valve

$20.23

4

71952

Clip9.8

6

10737

O-Ring 13.2X1.8

$0.80

7

84297

Temperature Thermo Switch

$65.22

8

70338

Cover,Tank Recovery

$9.40

9

70342

PIPE,TANK RECOVERY

$7.35

10

22924

Clip

$1.70

11

70340

TANK RECOVERY

$19.46

13

72027

CLIP 21/44

$13.51

15

10183

Bolt M6x16

$1.10

16

84133

Fixed Clamp Assembly

$7.91

18

10783

Bolt M8X20

$1.00

20

86376

Engine Inlet Hose

22

1309254

Washer Sealing 6.5MM

$1.10

26

10110

Bolt M6x20

$1.10

28

84087

BLOWER ASSY

$403.26

29

70960

Spring Nut M6

$1.50

35

10764

Clamp 20/32

$4.90

36

70811

Temperature Sensor, Coolant

$49.14

37

86382

Radiator B

$187.99

38

10110

Bolt M6x20

$1.10

39

10103

NUT M6

$1.10

41

35354

Blower Assy

$153.33

42

86383

Water Mains

45

10764

Clamp 20/32

$4.90

47

10178

SCREW ST4.2X13

$0.60

48

10001

Screw M5X12

$1.10
