KIT PRODUCT

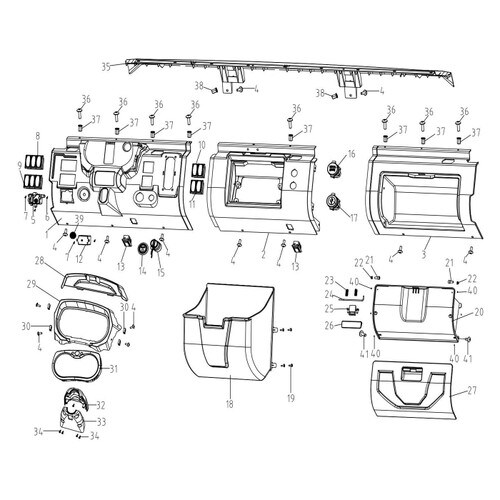

MXU 1000 DASH BOARD

REF#
SKU
DESCRIPTION
PRICE
QTY

1

16610270060

Dash Board, Left Cover

$102.00

2

16610270070

Dash Board, Middle Cover

$78.60

3

16610270080

Dash Board, Right Cover

$96.60

4

03414060164

INNER HEXALOBULAR SOCKET PAN HEAD SCREWS 6X16

$3.00

4

03414060164

INNER HEXALOBULAR SOCKET PAN HEAD SCREWS 6X16

$3.00

5

10909320000

2WD/4WD SWITCH

$42.95

6

03714420165

Bushing

$3.00

7

03714420125

Bushing

$3.00

9

16609190020

Combination Switch

$37.80

10

16609190030

Combination Switch(Headlight, Turn Light)

$26.60

11

16609190040

Combination Switch(Horn, Emergency )

$24.50

12

16609190050

Speed Control Switch

$63.00

13

13209190060

Combination Switch Cap

$3.00

14

10109430000

Push Start Button

$51.10

15

16509040000

Ignition Switch

$39.20

16

13609300000

POWER SOCKET 12V

$22.95

17

14709300010

Usb Socket

$22.46

18

17110270120

Storage Box

$61.20

19

03714350125

Bushing

$3.00

20

16610150250

Glove Box

$67.20

21

03344080255

Bushing

$3.00

22

04612080025

Hex Flange Nut Locking M8

$3.00

23

16610150290

Return Spring

$5.00

24

16610150280

Spindle, Glove Box Lock

$3.00

25

16610150260

Bolt, Glove Box Lock

$4.00

26

16610150270

Handel, Glove Box Lock

$7.70

27

16610150240

Glove Box Cap

$37.10

28

16609160070

Dash Cover

$30.80

29

16609160220

Instrument Base

$21.70

30

04922060025

Bushing

$3.00

31

16509160000

Display

$166.82

32

16610210020

Upper Cover, Steering Column

$11.20

33

16610210030

Lower Cover, Steering Column

$11.20

34

03714480125

Bushing

$3.00

34

03714480125

Bushing

$3.00

35

16610270090

Pinboard

$79.20

35

16610270090

Pinboard

$79.20

37

04512060027

Bushing

$3.00

38

04512060127

Rivet Nut M6

$3.00

40

03714300105

Tapping Screws St3.5X10

$3.00
