KIT PRODUCT

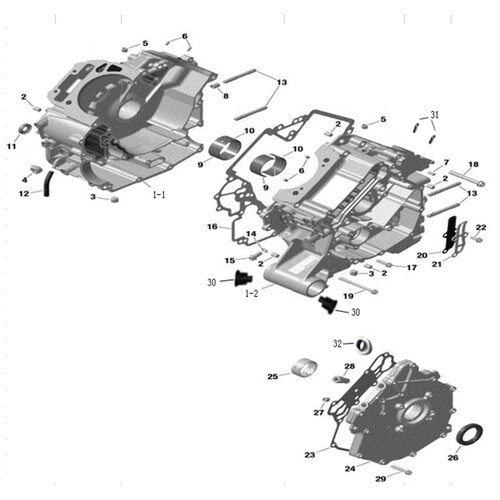

MXU 1000 CRANKCASE

REF#
SKU
DESCRIPTION
PRICE
QTY

1-2

21050300201

LEFT CRANKCASE

$389.95

1-1

21050300102

Right Crankcase

$204.75

2

21040105401

PIN-CENTER

$1.75

3

21040105801

PLUG SCREW NPT 1/4

$1.75

4

21040105601

PLUG SCREW NPT 1/2

$1.75

5

21040105701

PLUG SCREW NPT 1/8

$1.75

6

21040105502

DRIVE PIN 5x10

$1.75

7

21040106301

NEEDLE PIN

$1.75

8

21040116001

Dowel Pin 10_16

$1.75

9

21040106001

PLAIN BEARING

$11.85

10

21040106101

PLAIN BEARING

$11.85

11

21040106201

OIL SEAL

$1.75

12

21050301211

INSERT PIN

$8.75

13

21050301301

STUD

$1.75

14

21040107401

RING-SEALING

$1.75

15

01224080161

Flange Bolt

$3.00

16

21050301601

GASKET

$18.95

17

01224060251

Shaft Mount

$3.00

18

01214080651

Tie Rod

$3.00

19

01214060751

Rear Tire

$3.00

20

21040106501

VALVE PLATE

$11.85

21

21040106601

REED VALVE STOP

$4.95

22

01224060161

Flange Bolt

$3.00

23

21040106901

GASKET

$18.25

24

21050302400

POT COVER ASSEMBLY

$86.10

25

21040107101

BEARING SLEEVE

$11.85

26

21040107301

OIL SEAL

$10.25

27

21040105701

PLUG SCREW NPT 1/8

$1.75

28

21040107201

HOSE OUTLET NPT1/4

$4.95

29

01224060351

Flange Bolt

$3.00

30

21040206301

ENGINE BUSHING

$8.75

31

90101120650

INSERT PIN 10*1.5-17K

$4.95

32

21050302411

SLIP INSERT

$8.75
