KIT PRODUCT

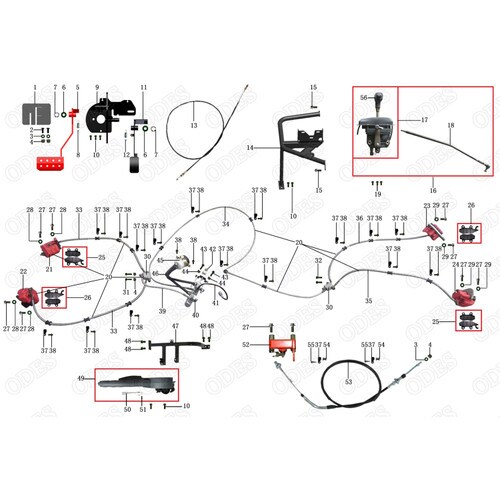

MSU 800-5 BRAKING SYSTEM

REF#
SKU
DESCRIPTION
PRICE
QTY

1

10106100000

THROTTLE/BRAKE BRACKET MUD SHIELD

$3.95

3

06119061805

Washer 6.5×18×1

$3.00

4

04612060026

Hex Flange Locking Nut 6

$3.00

5

10906080000

BRAKE PEDAL

$37.95

6

06219152805

Washer 15x28x2

$3.00

7

07031120004

Elastic Snap Ring 12

$3.00

8

10706030020

SPRING BRAKE PEDAL

$1.75

9

10106100010

Brake Bracket

$29.40

10

01224080206

Hex Flange Bolt 8×20

$3.00

11

10911010101

THROTTLE PEDAL

$37.95

12

10906100020

THROTTLE RETURN SPRING

$1.75

13

15111010010

Throttle Cable

$9.80

14

10108220000

Gear Shifter Bracket

$68.60

15

01256100206

Hex Flange Bolt 10×20×1.25

$3.00

16

10111120000

Gear Shifter Device Assy

$120.96

17

10111120010

Gear Component

$118.02

18

10111120020

Gear Shifting Device Tie Rod

$33.60

19

01224080166

Flange Bolt M8X16

$3.00

20

15606010540

Brake System

$248.00

23

13206010140

REAR BRAKE CALIPER, DRIVER SIDE

$89.95

24

13206010150

REAR BRAKE CALIPER, PASSENGER SIDE

$89.95

25

10906010060

Driver Side Brake Pads (1 Caliper Only)

$9.10

26

10906010280

Brake Pad,Fr&Rl

$9.10

27

01256100256

Screw

$3.00

28

06119102005

Bushing

$3.00

29

21040103201

WASHER 12.4_ 18.6_0.5 B1-F-6G

$1.75

30

10906010450

Hose Connector

$9.95

32

01254060306

Hex Flange Bolt 6×30

$3.00

33

13206010230

Front Brake Hose L=850MM

$23.10

34

13206010240

Rear Main Brake Hose L=1800MM

$43.40

35

13206010260

Rear Brake Hose, Passenger Side L=720MM

$17.50

36

13206010250

Rear Brake Hose Driver Side L=970MM

$23.80

37

10406010090

ROPE HOOK, (BRAKE HOSE CLAMP)

$1.75

38

01254060126

Lock Nut

$3.00

39

13206010220

Front Main Brake Hose L=450MM

$7.00

40

15106010400

Mater Cyliner, Footbrake Assembly

$82.80

41

10909050010

BRAKE SWITCH(WITH KNOT_

$5.95

42

15106010470

Brake Rod Master Cylinder

$9.00

43

01224080356

Flange Bolt

$3.00

44

04612080026

Hex Flange Locking Nut 8

$3.00

45

15106010440

Oil Cup, Brake System

$26.60

47

10108240000

SEAT BRACKET, DRIVER SIDE

$48.95

48

01224080186

Hex Flange Bolt 8x18

$3.00

49

14106090000

Grip Brake

$47.60

50

10906040030

HAND BRAKE SWITCH

$5.95

51

03144040082

Left Inner Bracket

$3.00

52

10906010110

MECHANICAL BRAKE (E BRAKE CALIPER)

$69.95

53

10911020000

BRAKE CABLE

$27.95

54

10106010520

Brake Line Rubber Sleeve

$3.00

55

03654050202

Bushing

$3.00

56

10111120050

Shifter Handball

$16.10
